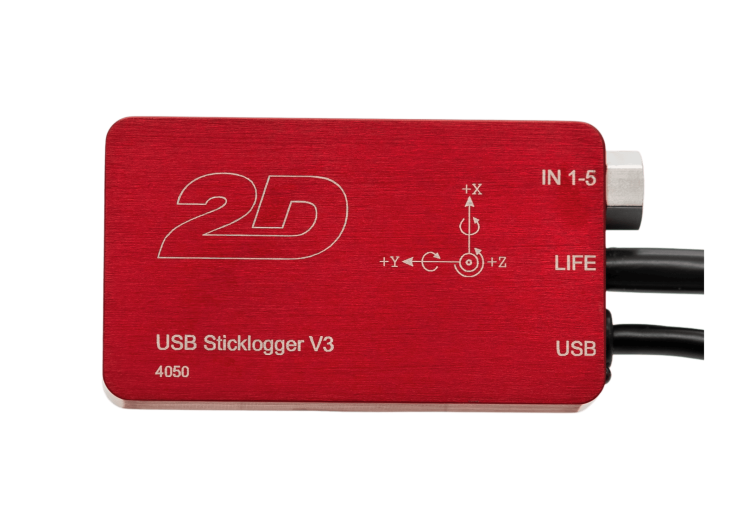

Sticklogger V3

The Sticklogger V3 is a compact data logger designed for efficient data acquisition. It records data directly onto a 256 GB USB 3.0 stick, ensuring swift and secure storage with write speeds exceeding 600 kB/s. The device supports hot-swapping of USB sticks, allowing for uninterrupted data logging during extended sessions. Configuration is straightforward via the USB stick, utilizing the Prep2DStick tool to prepare it for initial use.

Order Now

• High-Speed Data Logging: Records directly onto a 256 GB USB 3.0 stick with write speeds over 600 kB/s
• Versatile Input Channels: Supports 2 CAN lines up to 2 Mbit/s each, 4 analog inputs with up to 1000 Hz sampling rate, and 1 frequency input up to 50 kHz.
• Real-Time Calculations: Equipped with 24 Math (CALC) channels for online computations during data acquisition.

Overview

The Sticklogger V3 is engineered for professionals requiring reliable and high-performance data logging solutions. Its ability to handle multiple input channels, coupled with real-time calculation capabilities, makes it suitable for complex measurement environments. The device’s compact dimensions (70 x 40 x 13 mm) facilitate easy integration into various systems, ensuring flexibility and efficiency in data recording tasks.

Specs

• Storage: 256 GB USB 3.0 stick with hot-swapping, write speed > 600 kB/s.
• CAN Lines: 2 lines, up to 2 Mbit/s each.
• Analog Inputs: 4 channels, 1000 Hz sampling rate each, 16-bit resolution.
• Frequency Input: 1 channel, up to 50 kHz.
• Dimensions: Compact 70 x 40 x 13 mm, lightweight at 105 g.
• Protection Class: IP67-rated for durability.
• Operating Temperature: -20 to +75 °C.
• IMU (Optional): 6DoF motion tracking with accelerometer and gyroscope ranges.
